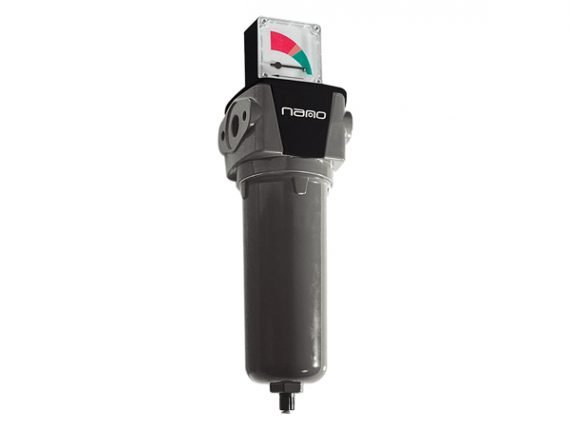

NANO
F1 – Performance Validated Filters
Clean and oil-free compressed air is easily achieved with the new range of NANO F1 performance validated compressed air and gas filters.
NANO F1 compressed air and gas filters provide:
- improved filtration for your compressor room or point of use application
- reliable and efficient liquid and particulate removal
- space saving design – no tie rod allows easy bowl removal
- five (5) element grades ranging from 25 to 0.01 micron
- nineteen (19) models ranging from 13 to 2550 Nm /hr (8 to 1500 scfm) at 7 barg (100 psig)
- a comprehensive range of compressed air filter accessories
Reliability is built in and backed by a 1 year element and a 10 year housing warranty!
Tested to ISO 12500 standards, the NANO F1 compressed air and gas filter range has been independently validated to guarantee the highest levels of air quality making the F1 your premier compressed air filtration solution.
DOWNLOAD CATALOG
- Energy efficiency
- Optimised filtration
- Stainless steel cylinders
- Outer drainage layer
- Air distribution duct
- Corrosion resistant end caps
- Compact design
- Large condensate reservoir
- Automatic drain standard
- Chemically compatible design
