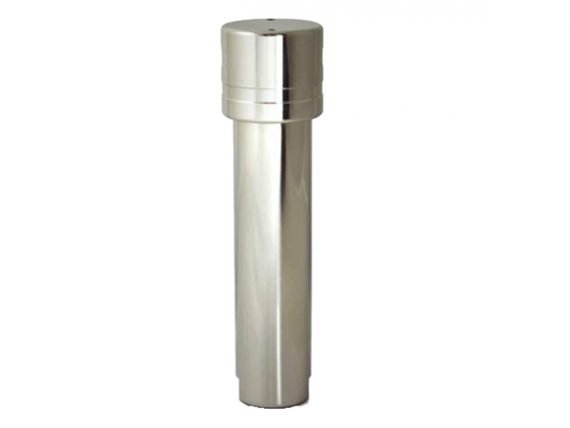

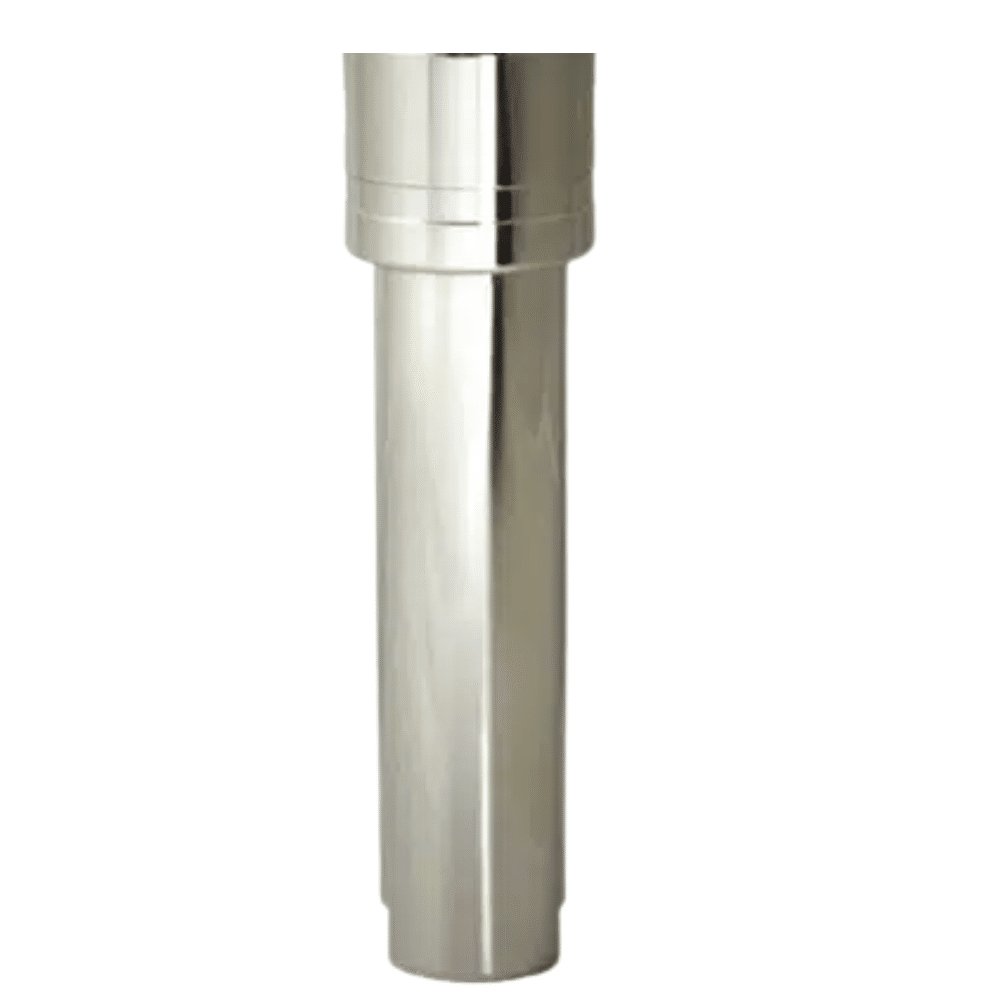

The NANO F4 range of stainless steel high pressure filters consists of 21 models across three pressure ranges offering flow ratings up to 4000 Nm /hr (2000 scfm) and pressure ratings up to 345 barg (5000 psig).

Manufactured from high grade 316 stainless steel and corrosive resistant coated carbon steel, the NANO F4 are precision engineered with high pressure applications in mind.

The 50 barg (725 psig) range incorporates an innovative push-fit element design to ensure optimum sealing and mechanical strength. Elements are color coded for easy identification. The 100 and 345 barg (1450 and 5000 psig) ranges incorporate elements with corrosion resistant stainless steel end caps.

Choose from five different levels of contaminant removal including 25, 5, 1 and 0.01 micron coalescing and/or dust filtration, and activated carbon oil vapour removal. The custom engineered filter media is designed to provide low air velocity preventing oil carry over for high efficiency filtration with minimal pressure drop.
