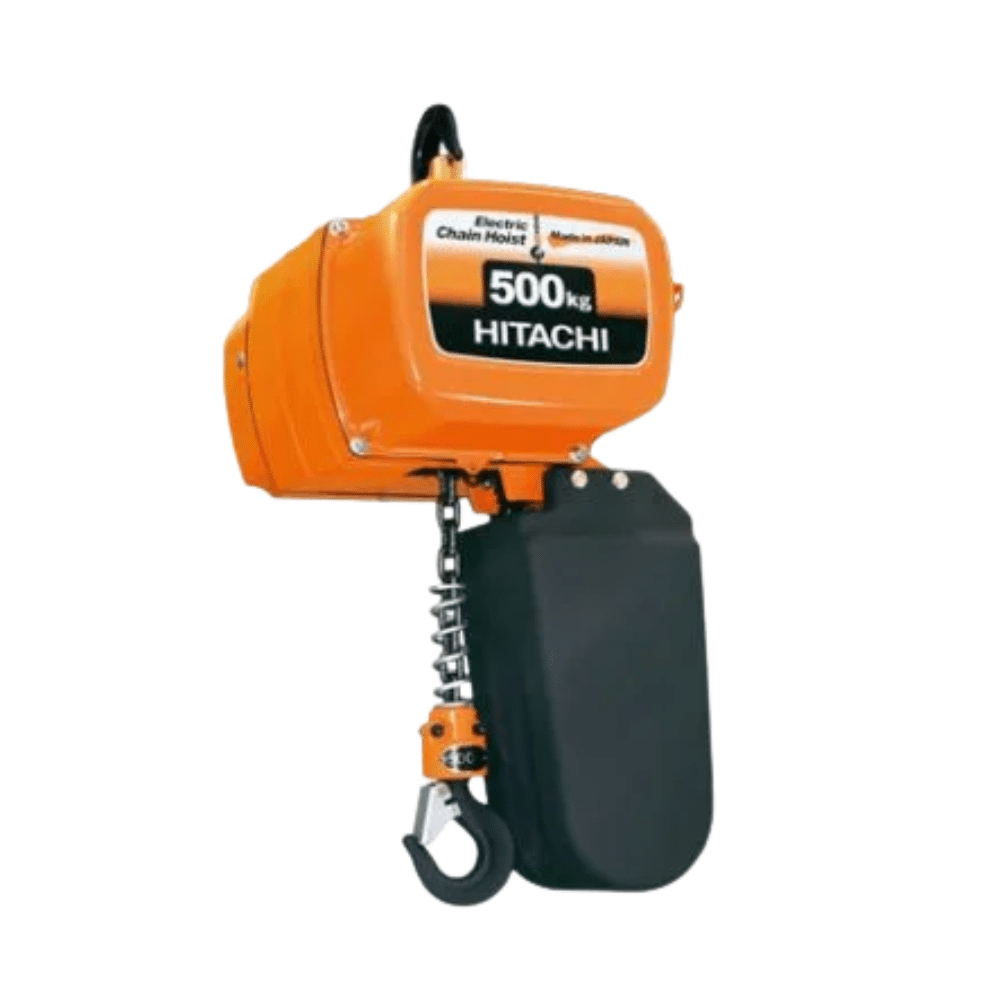

Electrical Chain Hoist
STANDARD TYPE (S-SERIES)
Electric Chain Hoists are used in a wide range of applications to make cargo handling more efficient. A wide range of applications are provided for not only general machinery, automobile, can manufacturing and other plants but also for applications from primary to tertiary industries including warehouses and retail stores.
DOWNLOAD CATALOG
- Helical Gearing used where practical to provide quiet operation.
- Long Life Brake Unit, Disk type Electro-Magnetic brake system for steady operation and long life
- Electro-Magnetic Contactor with mechanical-interlocking against line short by mechanical shock.
- Power Chain special (patented) alloy steel chain surface hardened for optimum strength and wear resistance. (U.S. PAT. 3830054)
- Chain Container as standard part for safer operation.
- Lower Hook is heat-treated and equipped with safety latch and 360.
- Transformer fuse is built in a primary side to prevent overheat.
- Reverse Phase Inspection Relay cut control circuit when reverse phasing. Except the 3 phase models of 250 kg and 500 kg, and single phase models.
- Limit Switch (Upper and Lower) interrupt motor power to prevent hook overtravel and hazardous conditions such as chain kink.
- Plug-in Cables reduce maintenance time and installation.
- Pushbutton Cable is molded with strain relief wire rope into one body. This assures easier and safer operation.
- Pushbutton Switch is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked. The 24 volt control circuit reduces shock hazard to the operation.
- Hitachi Overload Limiter unique, patented overload protection device is available on all models upon request. U.S. PAT. 4103873 CANADA PAT. 1062232 Others
