Gear Motor – Hollow Shaft Type
With precise machining and accurate assembly, our hollow shaft geared motors reach outstanding performance and high efficiency. The modularized design to connect with different types of gear box and wide range of ratios provides economical solutions to meet customers’ needs. Hollow Shaft Motor is used with Wheel Block.
DOWNLOAD CATALOG
- Design Standards:
- Motors comply with the DIN VDE 0530 specification for electrical machinery and VDE 0171 standard for motors with increased safety respect.
- Enclosure:
- The standard motor protection is IP54 according to IEC60034-5 standard. IP55 is also available on request.
- Applicable voltage:
- The motors are applied to following standard voltage. 50HZ- 220V, 380V, 400V, 415V, 525V. 60HZ- 220V, 380V, 440V, 460V,480V, 575V. Other voltages and frequencies are available
- Insulation:
- The standard insulation class is F but class H is also available on request.
- Increased safety design:

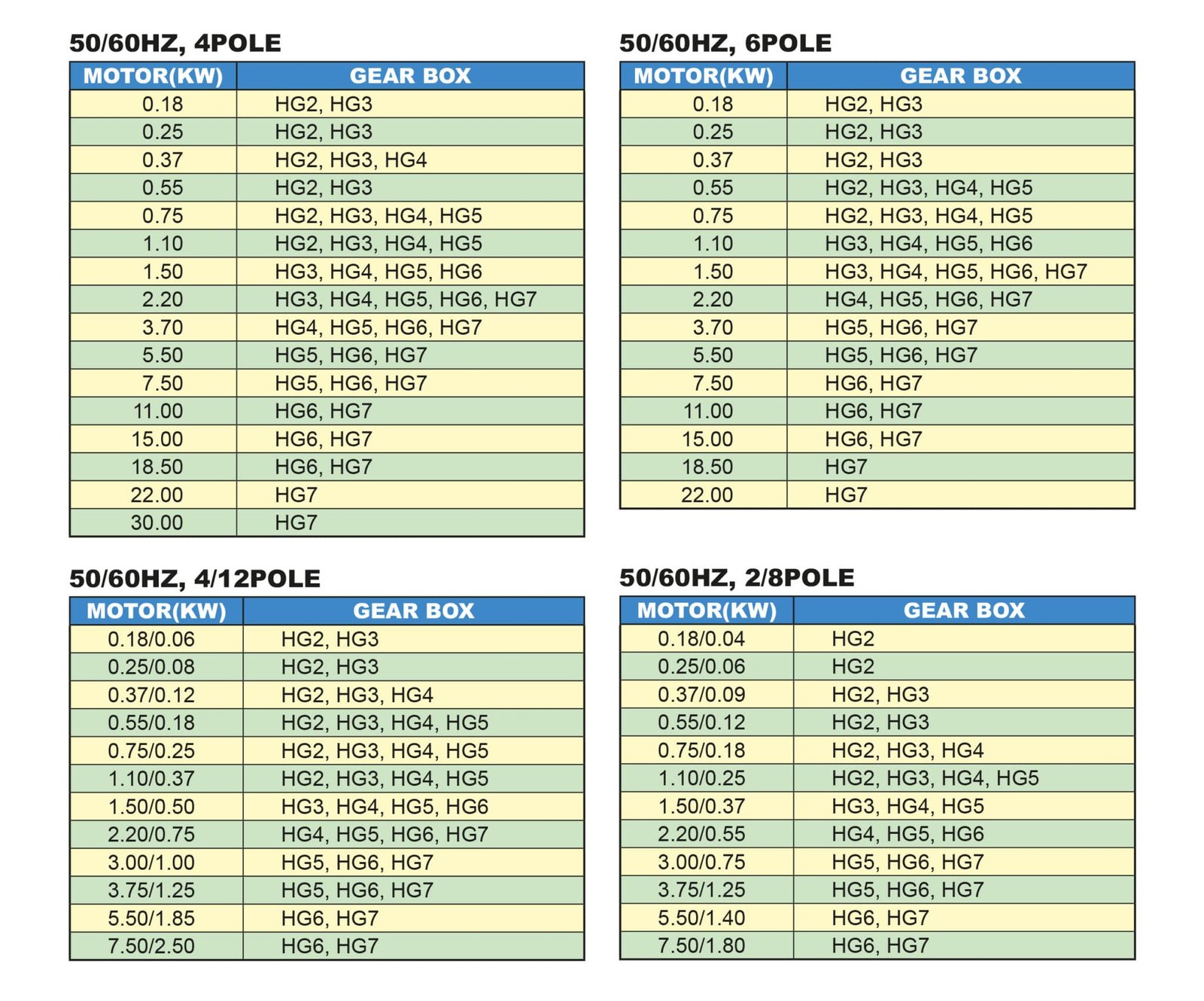

- Degree of motor protection: IP54 (standard). Power range: 0.18KW ∼ 30KW. Speed Reducers: double, triple, or multi-stage reduction
