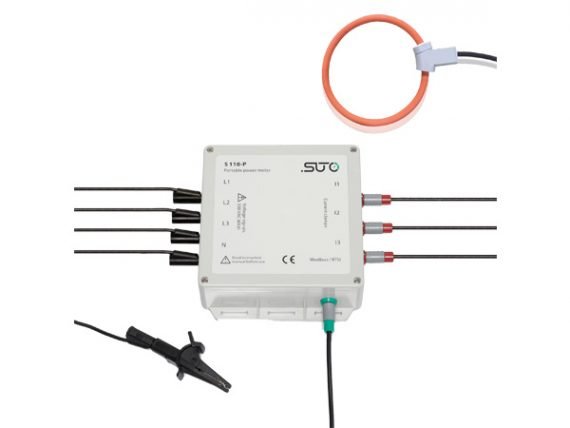

S110
The S110 Power Meters are designed for easy installation and high accuracy. They measure the actual power consumption in kW and accumulate the Energy consumption in kWh of a 3-phase load. The S110 can measure other parameters such as current, voltage, cos phi etc. Hat rail, wall mountable and portable versions are available.
- Actual power consumption in kW and kWh
- Hat rail, wall casing or portable version available
- Power range up to 2000 kW
- Three clamp sensor models 100 A, 1000 A and 3000 A for highly accurate measurement
