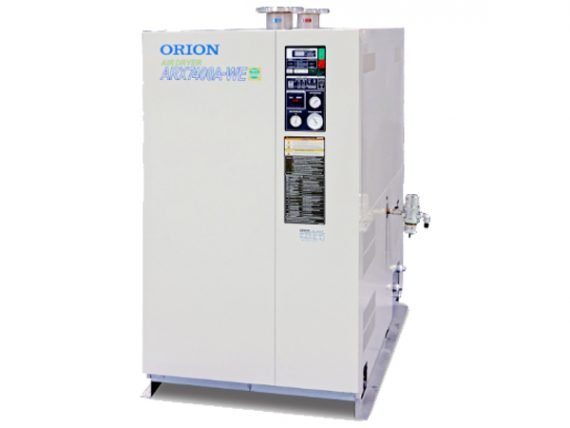

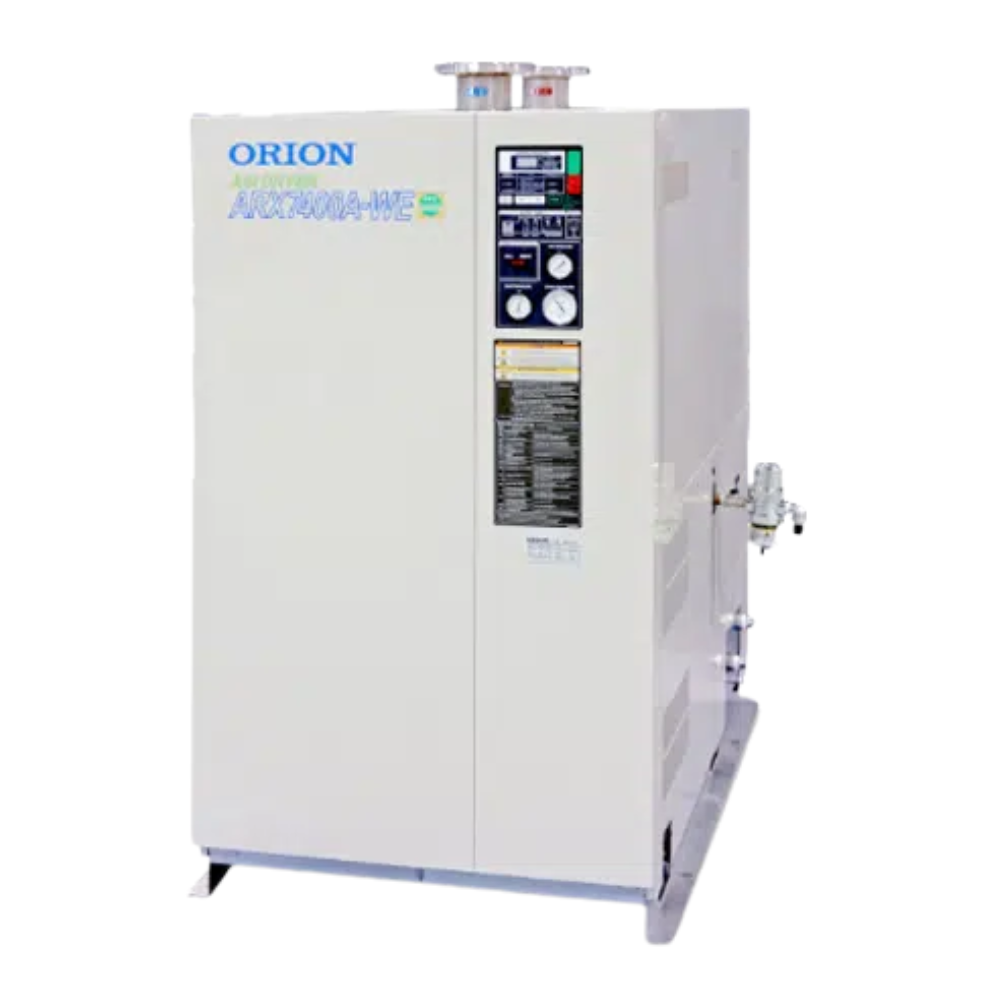

Refrigerated Air Dryer
ARX Large Size

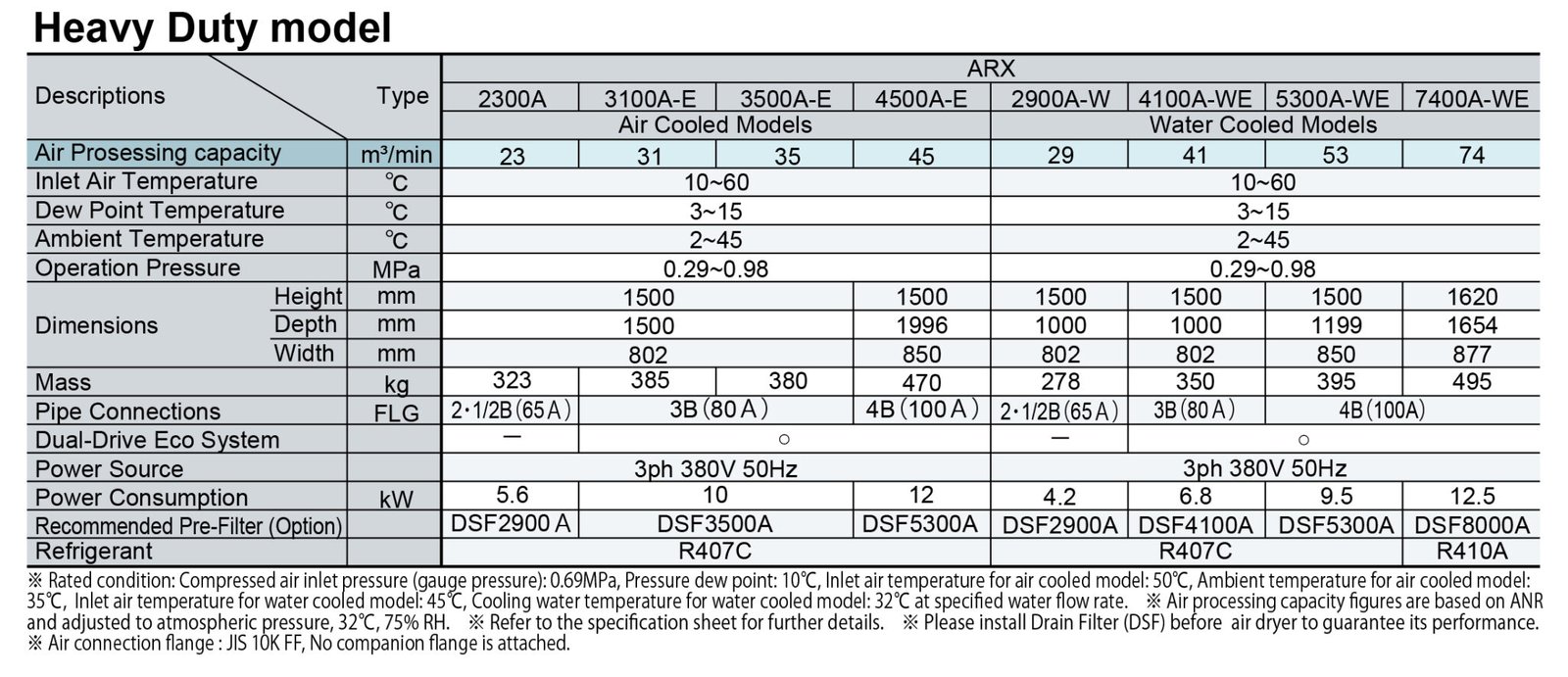

Operates under ambient temperature of up to 45 ° C. Large model specialized for high flow rate. Air-cooled type : ARX2300A/ ARX3100A-E/ ARX3500A-E/ ARX4500A-E. Water-cooled type : ARX2900A-W/ ARX4100A-WE/ ARX5300A-WE/ ARX7400A-WE
DOWNLOAD CATALOG
- Operatable under high temperature
- Operates under ambient temperature of up to 45 ° C
- Energy consumption has being reduced by controlling the number of compressors used for refrigeration (A-E and A-WE model only)
- The refrigerating circuit automatically selects 1-circuit operation (50%) or 2-circuit operation (100%) based on the processing air load. Up to 46% energy savings is possible with the Dual-Drive Eco System.
- Electronic controller installed
- Electronic controller installed as a standard feature. Easy to view the operating status.
