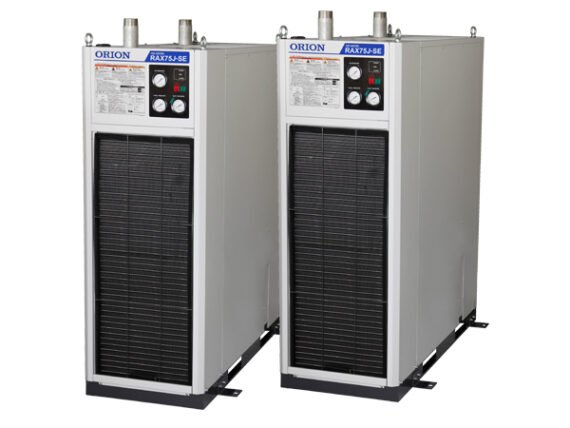

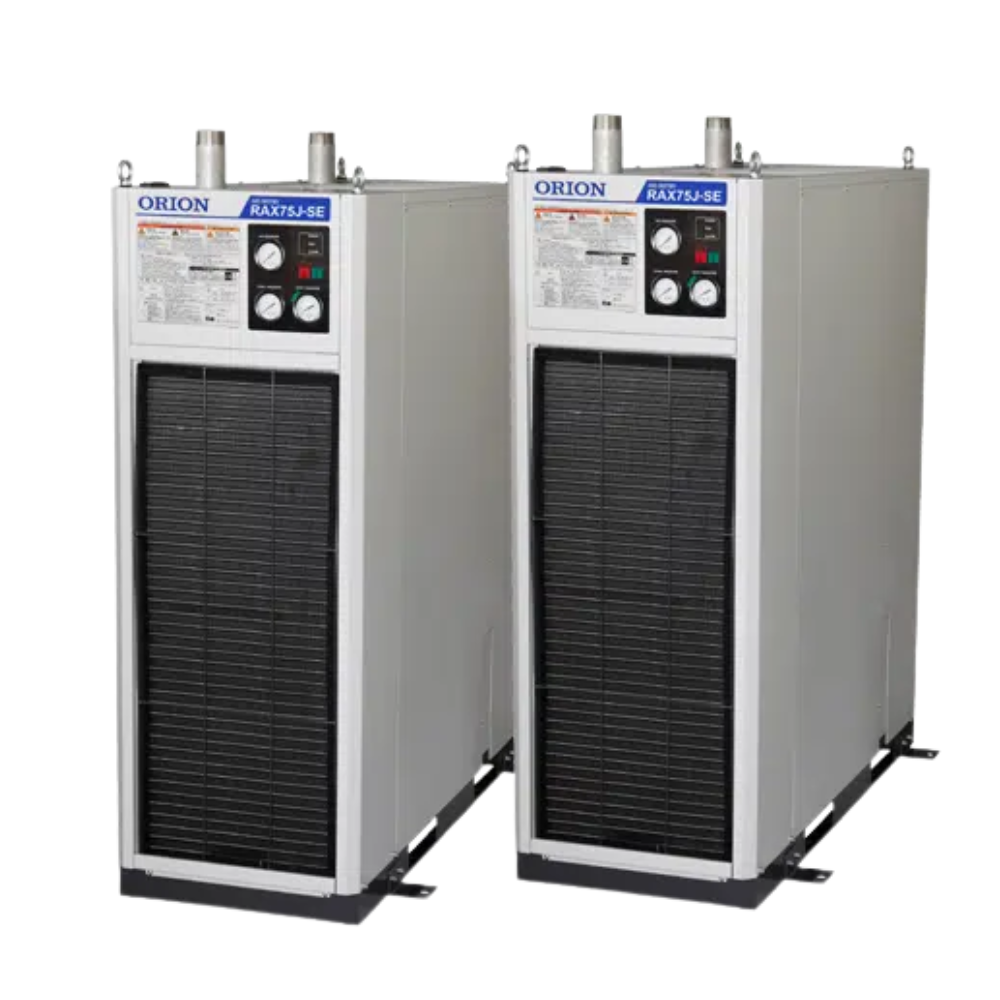

Refrigerated Air Dryer
RAX-SE Series High Temperature Inlet
Adopts a stainless steel shell heat exchanger compatible with high temperature environments up to ambient temperature of 45 C – 48 C (RAX55J – 75J-SE)/
DOWNLOAD CATALOG
- High temperature environment compatible
- Can be operated even at an ambient temperature of 45 C (RAX55J-SE to 75J-SE support 48 C)
- Stainless shell heat exchanger
- Adopts a stainless steel shell heat exchanger that matches the oil-free era of clean air and compressed air.
- Low pressure loss 0.015MPa or less realized (RAX75J-SE)
- A heat exchanger with less clogging and less pressure loss (pressure drop) even after long-term use.
- Equipped with suction filter as standard (RAX3J-SE to RAX75J-SE)
- A filter is provided as standard on the suction port of the condenser, making maintenance easier
- Space-saving and compact (RAX55J-SE to RAX75J-SE)
