HITACHI
OIL FLOODED BEBICON

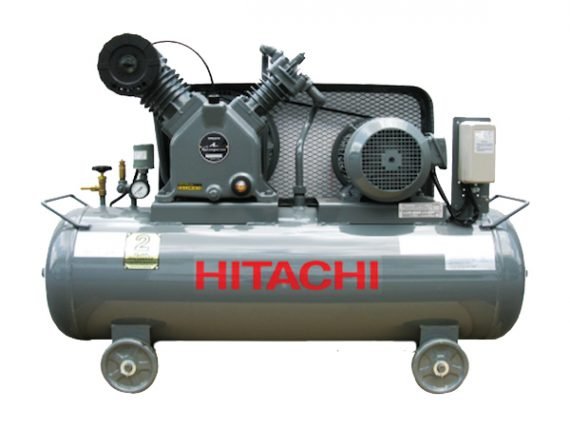

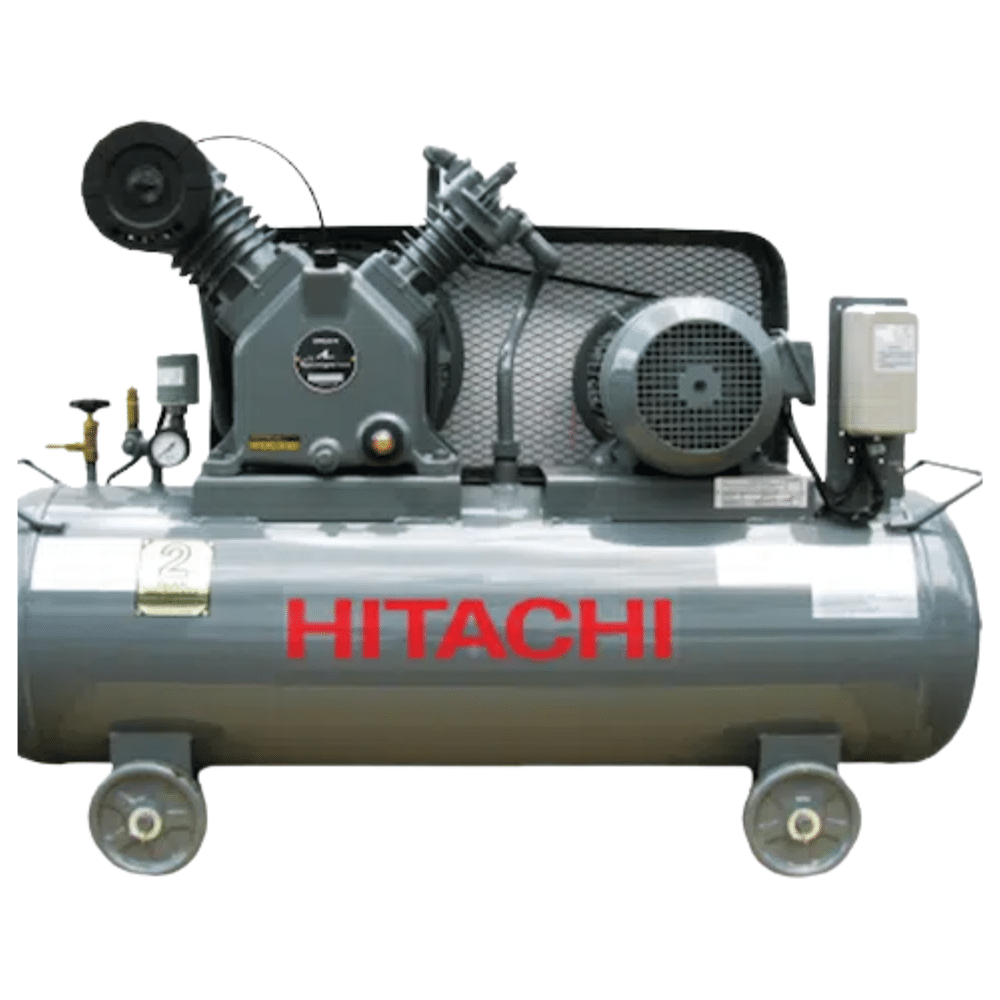

Hitachi BEBICON OIL is a heavy duty piston compressor designed to operate long hours. Suitable for manufacturing industries, automotive service workshops, spray painting and pneumatic tools. To maximize Energy-Saving effects, prevent performance degradation and protect BEBICON air compressors from trouble or breakdown, it is necessary to use Hitachi genuine BEBICON OIL as the ONLY lubricating oil during maintenance.
DOWNLOAD CATALOG
- High Performance
- Free air delivery increased through high efficiency.
- In addition to a configurational change of the suction and discharge ports, the design of the valve has been modified from U to I shape so as to employ a flapper valve which minimizes leakage of compressed air. Provided for minimizing generation of heat during suction is a high-cooling head. All of these have further increased air delivery.
- Free air delivery increased through high efficiency.
- High Reliability
- Temperature lowered with aluminum cylinder head and HITACHI's cooling fan.
- High efficiency flapper valves employed for ling life of 10,000 hrs.
- The main body has adopted a special light alloy having a long life. It is lighter and provides a higher efficiency than castings. In addition, temperature is kept low owing to use of the high-cooling head. In consequence, the lifetime of the air valve has been extended.
- Compact and Light in Weight
- Mounting area and weight reduced by aluminum cylinder head.
- Each air compressor has been designed so as to ensure a logical arrangement of the motor and control device, and to locate the gravity center as low as possible for the purpose of stabilization. Thus, installation is possible with minimal space. Both handling and transport have been made easier.
- Mounting area and weight reduced by aluminum cylinder head.
- Easy to Maintain
- Main spare parts designed the same as conventional type. Rings, connecting rod, and crank shaft (excluding high efficiency flapper valves)
- Pressure gauge, pressure control devices and stop valves equipped in one manifold.
- Approved Tank
- Complies with ASME code section V||| division one. Certification of machinery department provided. (0.75 to 11kW)
