HITACHI

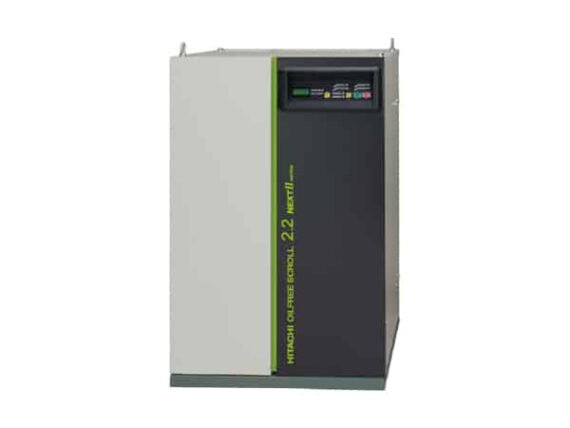

SCROLL AIR COMPRESSOR
Scroll compressor is a compressor which compresses air to gyrate two scroll-like heads. This design reduces the pulsing motion and vibration during operation, resulting in low noise and low vibration. This high reliability model has lower noise and lesser vibration. The design offers more space saving solutions and the multi-drive control also improves on energy saving. Suitable for R&D laboratories, schools and specialised industries.
DOWNLOAD CATALOG
- Proprietary Tip Seal and Unique Scroll Wrap
- Increased performance (low leakage)
- Extended service intervals
- High efficiency
- Special Alumite Treatment
- Extends scroll life
- Limits life cycle cost
- Microprocessor Based Control
- Provides the optimized package operation under varying condition.
- Special Tip Seal Material
- Provides high performance with high reliability by extremely low wear.
- Oil-Less Design
- Eliminates environmental emissions
- Concerns natural resources
- Industry Leading Sound
- Quiet enclosure standard
- Design for the minimization of leak paths
- Control Design
- Standard microprocessor control
- Cycle control logic protects from rapid cycling
- Space Saving
- Unit is compact in overall dimension
- Panel accessibility promotes space conservation
- Scroll compression principle
- Compressor sucks air through air inlet located at outer scroll.
- Compression chamber goes smaller with rotary movement and trapped air is compressed.
- Compression chamber becomes minimum volume at the center of the scroll and air is pumped out through air outlet located at the center of scroll.
- These suction, compression & discharging, process is repeated continuously.
